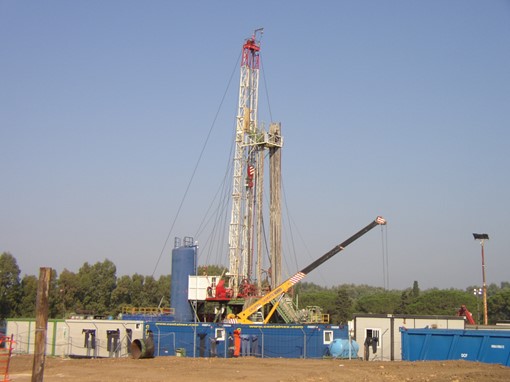

CORSAIR 300 is the perfect rig to perform workover services, & drilling, reducing environmental impact and safety solution.

RIG TECHNICAL SPECIFICATIONS

Mast:

  • Type: CCC- Massarenti API 4E
  • System: Conventional
  • Total height incl. Substructure: 33 m Double- 27 m Single
  • ClearHeight: 25 m – 19 m
  • Hookload Capacity: 98 Ton ( 215600 lbs)
  • Racking Capacity DP 5": 1800 mt

Substructure:

  • Type: CCC-Massarenti- Ballerini
  • Height of drill floor: 4,60 m
  • Height below rotary table: 4,30 m
  • Load Capacity: 160 Ton (242000 lbs)
  • Setback capacity: 60 Ton

Traveling Block:

  • Type: Ideco UTD 110-3-24
  • Load Rating 110 Ton

Rotary Table:

  • Type: GD
  • Size: 17 1/2"
  • Load Capacity: 110 ton
  • Type: Rectangular tanks
  • Mud Capacity: 120 mc
  • Shale Shaker Type: Ganmecaniske
  • Desander: Ganmecaniske 2x10"
  • Desilter: 16 x 3"

L'offerta può includere anche la nostra disponibilità a fornire il rig completo di mud system, BOP, pompe, generatori e ulteriori equipaggiamenti ausiliari.
